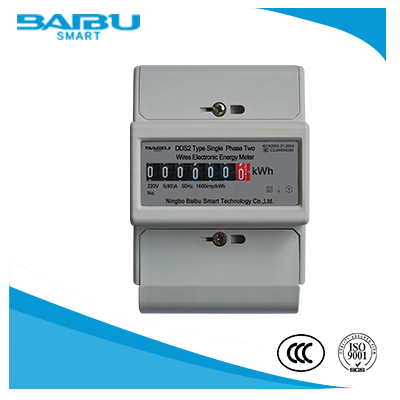

DDS2-DIN-J1 DIN RAIL SINGLE PHASE ELECTRONIC ENERGY METER

SPECIFICATION:
Used for AC single phase active energy measuring.
DIN rail installation type, compact design.
Display type: mechanical counter, unit is kwh, record active total energy.
Display range of the counter: 5+1,6+1
Accuracy active energy measuring, no need degugging for long time work

Details description

STANDARDS:
According to IEC62053-11 standard
According to IEC62053-21 standard

FUNCTIONS:
Total energy= positive active+negative active
Display data after power off (counter display)

TECHNICAL SPEC.:
Reference voltage (Un):110V, 120V, 220V, 230V, 240V
Normal work voltage: 80%~120%Un
Limit work voltage: 70%~130%Un
Current spec. Ib(Imax): 5(60)A,10(60)A
Reference frequency:50Hz, 60Hz
Starting current: 0.004Ib
Connection type choice: single phase two wires, up in down out, L, L, N, N
Impulse constant:1600imp/kWh
Standard level:1.0class,2.0class
Power consumption of meter:<0.6W
Working life:not less than 10 years
Data store: data will always be stored after power off (mechanical counter)
Impulse output: LED impulse, optical coupler output
Size of the appearance:(mm):113*78*65

WORKING ENVOIRENMENT:
Working temperature: -35℃~70℃
Limit working temperature: -40℃~80℃
Store and ship temperature: -40℃~80℃
Relative humidity::=<95%
Atmospherie pressure:63kPa~106.0kPa
