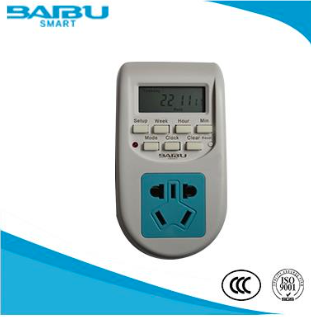

BKT10A (BKT16A) ENERGY SAVING TIMER SWITCH

SPECIFICATON
This product is used for AC power plug time control, apply to the timer control on the appliance in the home and company
Adopt plug-in direct insert type, impact design
LCD display, 24 hours display mode.
Achieve control the on/off of power for various time
Electricity will be more convenient, save energy and safe.

Details description

FUNCTIONS:
Setup 20pcs on time and 20pcs off time for whole day
Set different day control time based on unit of day, seven days is a cycle

Low consumption design, power-off display and setup function, which is convenient and safe.
One key set Auto, on, off mode.
Lock function by key, which avoid any incorrect operation.
Reset key to reset all the parameters
Accuracy clock, setup of clock is easy

TECHNICAL SPEC.
Reference voltage (Un):110V, 120V, 220V, 230V, 240V
Normal work voltage: 80%~120%Un
Limit work voltage: 70%~130%Un
Max current (Imax):  BKT10BL   10ABKT16BL   16A
Reference frequency:50Hz, 60Hz
Max power: Un*Imax
Plug-in: Chinese standard, Japanese standard, European Standard, British style and United State standard.
Accuracy of clock: 1s/d
Power consumption<0.5W
Working life:not less than 5 years (except battery)
Size of the appearance:(mm):110*62*62) (include plug-in)

WORKING ENVOIRENMENT:
Working temperature: -25℃~70℃
Limit working temperature: -30℃~80℃
Store and ship temperature: -40℃~85℃
Relative humidity::=<95%
Atmospherie pressure:63kPa~106.0kPa
