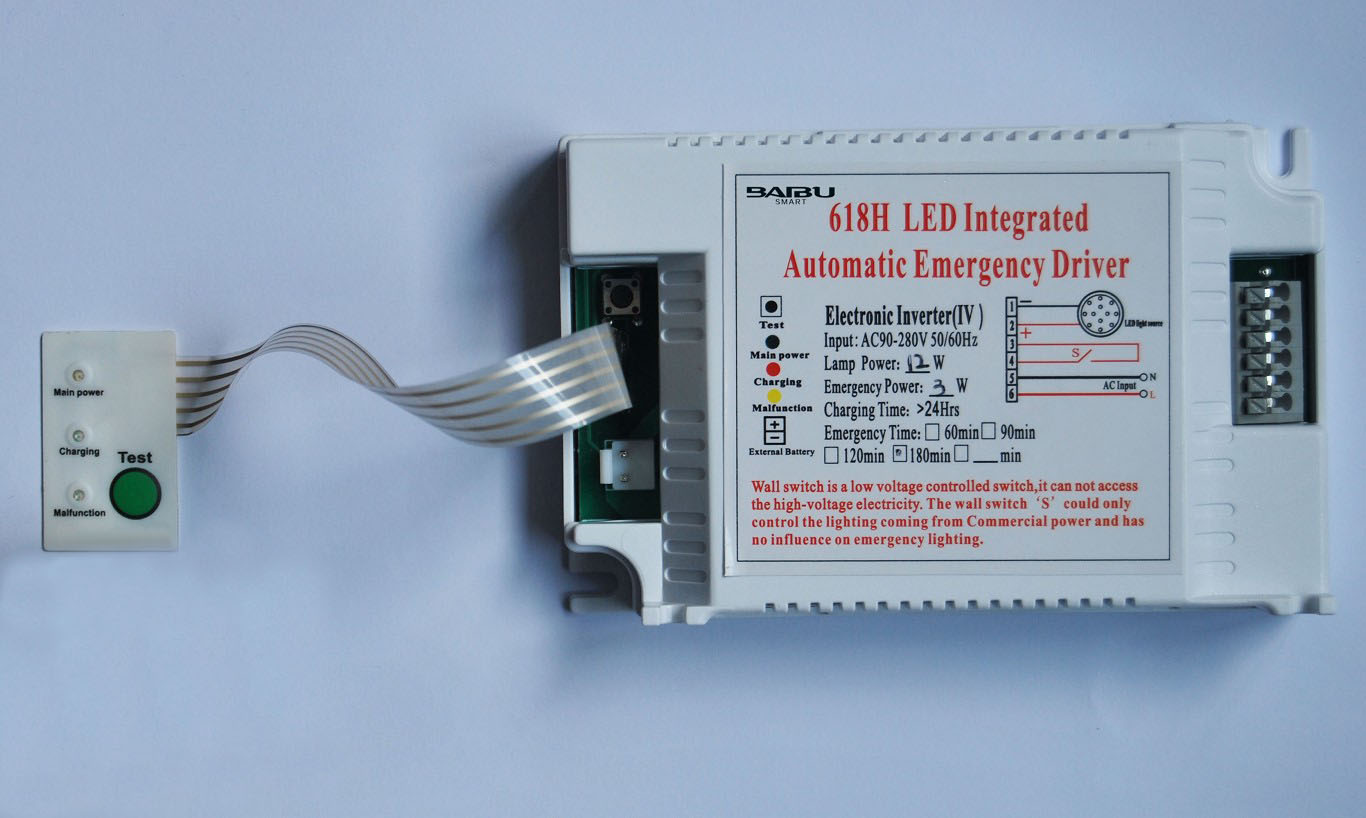

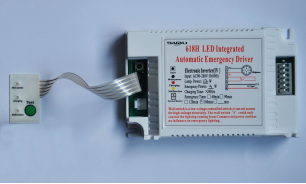

BLK-618T EMERGENCY DRIVER INVERTER CONVERSION KIT

l This product can be used as LED emergency light power supply l Installed in the LED ceiling light. l External power supply indicate, charging state indicate, fault light indicate, out going line installation l External testing button, which can check the working state of equipment at any time l This product can be fit for installation with infrared body sensor switch and smart radar switch etc., which easily achieve combining with smart sensor lighting and emergency lighting.

Details description

BLK-618T EMERGENCY DRIVER INVERTER CONVERSION KIT


SPECIFICATON

l This product can be used as LED emergency light power supply

l Installed in the LED ceiling light.

l External power supply indicate, charging state indicate, fault light indicate, out going line installation

l External testing button, which can check the working state of equipment at any time

l This product can be fit for installation with infrared body sensor switch and smart radar switch etc., which easily achieve combining with smart sensor lighting and emergency lighting.

FEATURES

l Setup different emergency power, voltage, current and working time based on the LED

l There is high-energy battery inside; the working temperature range is wide.

l Inside LED driving power supply, which associated with switch used for normal lighting (not emergency mode)

l Easy for installation, long emergency time, safe and reliability

l Automatically testing mode, one time short test every week, one time capacity test every 6 months

l Protection of battery polarity reversal and deep discharge

l Open-circuit fault of LED light indication

l Charging state indicate

l External power supply indicate

l Optional manual experiment switch

l Material of enclosure is PC


TECHNICAL SPEC.

l Rated power voltage: 90V-280V

l Rated frequency: 50Hz, 60Hz

l Stand-by consumption: ≤0.5W

l Power factor: ≥0.87-0.95

l Over-voltage protection: 320V

l Power of inside LED driver：12W

l Output current of inside LED driver (constant current): 300mA

l Power of emergency LED: 3W

l Discharge time ≥3 hours

l LED forward voltage range: 18-46v

l Output current of emergency (constant current): 100mA

l Battery’s spec. 1800mAh，7.2V

l Charging time ≤24 hours

l Working life: not less then 5 years (except battery)

l Size of the appearance (mm): emergency control box 120*80*32, battery inside


WORKING ENVOIRENMENT:

l Working temperature: -20℃~55℃

l Max temperature of enclosure≤70℃

l Limit working temperature: -25℃~60℃

l Protection class: IP 20

l Store and ship temperature: -30℃~70℃

l Relative humidity:：=<95%

l Atmospherie pressure：63kPa~106.0kPa
