MINI POWER CURRENT TRANSFORMERS FOR SMART METER BWCT-PT-741
Details description

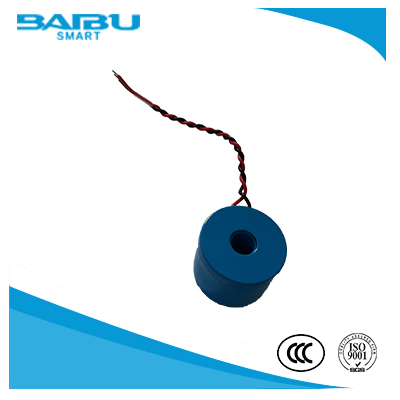

MINI POWER CURRENT TRANSFORMERS FOR SMART METER
BWCT-PT-741
l Mainly used in single phase or three phase electronic energy meter, serving as current sampling tool or the current measuring tool for general industrial instruments and measuring control equipment.
l The secondary coil and magnetic core adopt vacuum epoxy sealed package, excellent waterproof and anti-seismic performance and also has good insulating property.
l The primary coil can use copper bar or copper wire for connection.
l Accuracy class can be chose: 0.1 class, 0.05 class.
l It satisfies the relative requirement of IEC61036 Energy Meter Standard. 。
Note: Wire length and colors can be customized.
l Current Specification
|
Current (input/output) |
Load Resistance |
Operating Frequency |
Ratio |
Accuracy Class |
|
1(120)A/3.7V |
1KΩ |
50/60 Hz |
1000:1 |
0.05， 0.1 |
|
1(120)A/3.7V |
1KΩ |
50/60 Hz |
2000:1 |
0.05， 0.1 |
l Current Error And Phase Error
|
Accuracy Class |
Current error r ±（%） |
phase error ±（’） |
|||
|
0.01In |
0.05In～Imax |
0.01In |
0.05In |
0.2In～Imax |
|
|
0.05 |
0.1 |
0.05 |
8 |
4 |
2 |
|
0.1 |
0.2 |
0.1 |
15 |
8 |
5 |
|
DC Measure Accuracy (D type) |
≤±2.1% |
|
|||
l Other Parameter
|
Withstand Voltage Of Primary & Secondary |
4000Vrms |
|
Isolation Resistance |
≥1000MΩ（Testing Voltage:500VDC） |
|
Operating Temperature |
-50～+75℃ |
|
Stock Temperature |
-55～+85℃ |
l Packing Data
|
Net /pcs |
|
|
pcs/CTN |
|
|
Weight/CTN |
|
|
Cubage/CTN |
|
